MODEL NO. LED-8087E | 30W | Replaces up to 100W | E26 Edison Base

MODEL NO. LED-8087M | 30W | Replaces up to 100W | M40 Mogul Base

MODEL NO. LED-8088E | 50W | Replaces up to 175W | E26 Edison Base

MODEL NO. LED-8088M | 50W | Replaces up to 175W | E39 Mogul Base

MODEL NO. LED-8089M | 80W | Replaces up to 250W | E39 Mogul Base

MODEL NO. LED-8090M-A | 120W | Replaces up to 400W | E39 Mogul Base

8081e 8082m

MODEL NO. LED-8055E | 30W | Replaces up to 100W | E26 Edison Base

MODEL NO. LED-8055M | 30W | Replaces up to 30W | E39 Mogul Base

MODEL NO. LED-8045M | 50W | Replaces up to 175W | E39 Mogul Base

MODEL NO. LED-8055EC | 30W | Replaces up to 300W | E26 Edison Base | Color Changing

MODEL NO. LED-8055EW | 30W | Replaces up to 300W | E26 Edison Base | White

MODEL NO. LED-8081E | 30W | Replaces up to 100W | E26 Edison Base

MODEL NO. LED-8082M | 45W | Replaces up to 175W | E39 Mogul Base

#High Bay

MODEL NO. LED-8036M-A | 100W | Replaces up to 250W | EX39 Base

MODEL NO. LED-8030M-A | 140W | Replaces up to 400W | EX39 Base

MODEL NO. LED-8032M-A | 140W | Replaces up to 400W | EX39 Base

MODEL NO. LED-8025E | 52W | Replaces up to 175W | E26 Edison Base

MODEL NO. LED-8025M | 52W | Replaces up to 175W | E39 Mogul Base

DESCRIPTION

18W LED Retrofit Lamp for replacing HID lamps up to 100W
120 – 277 Volt, E26 base, Approved by UL for enclosed fixtures, Active cooling is provided by long life “Mag-Lev” cooling fan which keeps LED’s cool even when operating within enclosed light fixtures. UL1993 certified for USA and Canada. Available in Daylight (5700K), Cool White (4000K) or Neutral White (3000K).

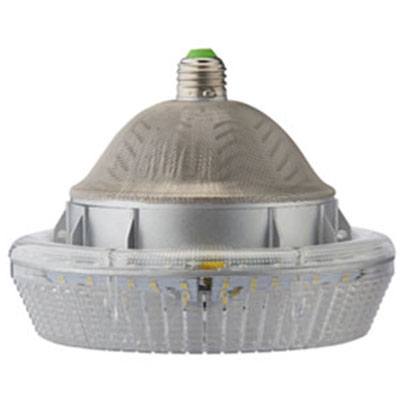

MODEL NO. LED-8035E-A | 60W | Replaces up to 175W | E26 Edison Base

MODEL NO. LED-8034M | 150W | Replaces up to 400W | EX39 Base

MODEL NO. LED-8050M | 300W | Replaces up to 1000W | EX39 Base

MODEL NO. LED-8083E | 30WReplaces up to 100w | E26 Edison Base

MODEL NO. LED-8038E-A | 14W | Replaces up to 70W | E26 Edison Base

MODEL NO. LED-8039E-A | 18W | Replaces up to 70W | E26 Edison Base

MODEL NO. LED-8029E-A | 22W | Replaces up to 100W | E26 Edison Base

MODEL NO. LED-8029M-A | 22W | Replaces up to 100W | E39 Mogul Base

MODEL NO. LED-8033E | 38W | Replaces up to 175W | E26 Edison Base

DESCRIPTION

38W LED Retrofit Lamp for replacing HID lamps up to 175W
120 – 277 Volt or 120-347V for Canadian “C” model, E26 base, Approved by UL for enclosed fixtures, Active cooling is provided by long life “Mag-Lev” cooling fan which keeps LED’s cool even when operating within enclosed light fixtures. UL1993 certified  for USA and Canada.  Available in Daylight (5700K), Cool White (4200K) or Neutral White (3000K).

SPECIFICATIONS
Bulb Type: Cylindrical
Bulb Material: Polycarbonate / Aluminum
Lumens: 3661/ 3919/ 3955
Dimensions: 6.02” x 2.76”
Input Voltage: 120-277V
CRI: Up to 84
Lumens Per Watt: 117 / 127 / 128
Base Type: E26 Edison
Replaces: 100W HID
Lifetime (hours): Up to 50,000
Output Power: 30W
Beam Angle: 360
Color: Neutral White (3000K) / Cool White (4200) / Daylight (5700K)
Dimmable: No
Warranty: 5 year warranty

ul_us_can_Logo

PRODUCT NOTES
  • When installing LED-8000 series retrofit within HID fixtures, ballast must be bypassed when present.
  • LED-8000 series retrofits are UL damp rated, sealing the existing HID fixture after installation will deliver best results.
  • Installing surge/lightning protectors is highly recommended and helps to eliminate premature driver failure caused by surges and other power fluctuations.
  • See Technical Documents web page for more detailed information and instructions.

MODEL NO. LED-8024E | 45W | Replaces up to 175W | E26 Edison Base

MODEL NO. LED-8024M | 45WReplaces up to 175W | E39 Mogul Base

MODEL NO. LED-8046M | 65W | Replaces up to 250W | E39 Mogul Base

MODEL NO. LED-8027M | 100W | Replaces up to 400W | E39 Mogul Base

MODEL NO. LED-8083E | 30WReplaces up to 100w | E26 Edison Base

MODEL NO. LED-8084M | 45WReplaces up to 175W | E39 Mogul Base

MODEL NO. LED-8085M | 60WReplaces up to 250w | E39 Mogul Base

METAL HALIDE BALLAST COMPATIBLE

MODEL NO. LED-8035e-MHBC | 60W | Replaces HID lamps up to 175W M57 Ballast & 250W M58 | E26 EDISON Base
MODEL NO. LED-8036M-MHBC | 100W | replaces up to 250w m58 & 320w m132 bALLASTS | E39 Mogul Base
MODEL NO. LED-8030M-MHBC | 140W | replaces up to 320W M132 & 400w M59 BALLASTS | E39 Mogul Base
MODEL NO. LED-8032M-MHBC | 140W | replaces up to 320W M132 & 400w M59 BALLASTS | E39 Mogul Base

MODEL NO. LED-8088E-MHBC | 50W | Replaces HID lamps up to 175W M57 Ballast & 250W M58 | E26 Edison Base

MODEL NO. LED-8088M-MHBC | 50W | Replaces HID lamps up to 175W M57 Ballast & 250W M58 | E39 MOGUL Base

MODEL NO. LED-8089M-MHBC | 80W | replaces up to 250w m58 & 320w m132 bALLASTS | E39 Mogul Base
MODEL NO. LED-8090M-MHBC | 120W | replaces up to 320W M132 & 400w M59 BALLASTS | E39 Mogul Base
DESCRIPTION
SPECIFICATIONS

Bulb Type:                   Site / Warehouse

Bulb Material:             Aluminum / Polycarbonate

Lumens:                      18000 / 5000K

Dimensions:                24″ X 24″ X 2.5″

Input Voltage:            120-277V

CRI:                                >80

Lumens Per Watt:     120

Base Type:                   N/A

Replaces:                     400W

Lifetime (hours):        Up to 50,000

Output Power:           150W

Beam Angle:               120

Color:                           Daylight (5000K)

Dimmable:                  No

Warranty:                    5 year warranty

PRODUCT NOTES
  • When installing LED-8000 series retrofit lamps within HID fixtures, ballast must be bypassed when present.
  • LED-8000 series retrofits are UL damp rated, sealing the existing HID fixture after installation will deliver best results.
  • Installing surge/lightning protectors is highly recommended and helps to eliminate premature driver failure caused by surges and other power fluctuations.
  • See Technical Documents web page for more detailed information and instructions.
DESCRIPTION
SPECIFICATIONS

Bulb Type:                   Site / Warehouse

Bulb Material:             Aluminum / Polycarbonate

Lumens:                      36000 / 5000K

Dimensions:                48″ X 24″ X 2.5″

Input Voltage:            120-277V

CRI:                                >80

Lumens Per Watt:     120

Base Type:                   N/A

Replaces:                     1000W

Lifetime (hours):        Up to 50,000

Output Power:           300W

Beam Angle:               120

Color:                           Daylight (5000K)

Dimmable:                  No

Warranty:                    5 year warranty

PRODUCT NOTES
  • When installing LED-8000 series retrofit lamps within HID fixtures, ballast must be bypassed when present.
  • LED-8000 series retrofits are UL damp rated, sealing the existing HID fixture after installation will deliver best results.
  • Installing surge/lightning protectors is highly recommended and helps to eliminate premature driver failure caused by surges and other power fluctuations.
  • See Technical Documents web page for more detailed information and instructions.
DESCRIPTION

9 Watt Replaces up to 26W fluorescent or PL lamps

SPECIFICATIONS

Bulb Type:                   G24q PL LED

Bulb Material:             PC w/ aluminum heatsink / back support

Lumens:                     704 / 834

Dimensions:               6.2” x 1.4″

Input Voltage:             120-277V

CRI:                             Up to 85.4

Lumens Per Watt:      85.4 / 84.9

Base Type:                 G24q

Replaces:                   26W PL

Lifetime (hours):       Up to 35,000

Output Power:           9W

Beam Angle:             120 / Horizontal

Color:                         2700K and 4000K

Dimmable:                 No

Warranty:                   5 year warranty

*Gen 2 New replaces LED-7304

ul_us_can_Logo

DESCRIPTION

PL LED 7W G24Q & GX24Q 4 PIN GEN 3 UNIVERSAL, ELECTRONIC BALLAST & LINE VOLTAGE COMPATIBLE

***Use this product instead of 7314

SPECIFICATIONS

Bulb Type:                   G24q PL LED

Bulb Material:             PC w/ aluminum heatsink / back support

Lumens:                     850 / 900 / 900

Dimensions:               5.75” X 1.374″

Input Voltage:             120-277V

CRI:                             Up to 85.4

Lumens Per Watt:      110/110/110

Base Type:                 G24Q

Replaces:                   26W PL

Lifetime (hours):       Up to 35,000

Output Power:           9W

Beam Angle:             120 / Horizontal

Color:                         2700K, 3500K, & 4000K

Dimmable:                 No

Warranty:                   5 year warranty

*Gen 3 New replaces LED-7324

ul_us_can_Logo

DESCRIPTION

11W G24q 4 Pin LED Retrofit Lamp PL CFL lamps up to 26W, G24q base, UL1993 certified and UL1598C classified for USA and Canada. Electronic Ballast & Line Voltage Compatible

SPECIFICATIONS

Bulb Type:                 G24Q 4 PIN GEN 2 UNIVERSAL

Bulb Material:          PC w/ aluminum heatsink / back support

Lumens:                    1065 / 1100 / 1167

Dimensions:              6.2″ x 1.4″

Input Voltage:           120-277V

CRI:                            85.4 / 84.9 / 84.9

Lumens Per Watt:   96 / 100 / 106

Base Type:                G24q

Replaces:                  26w G24q (4 pin) Compact Fluorescent Lamps

Lifetime (hours):      Up to 50,000

Output Power:          11W

Beam Angle:            120/ 360 Omni-Directional

Color:                         2700K, 3500K, & 4000K

Dimmable:                No

Warranty:                  5 year warranty

*New Replaces LED-7310

ul_us_can_Logo

LED-7322-A

DESCRIPTION

7W G24d 2 Pin LED Retrofit Lamp PL CFL lamps up to 26W, G24d base, UL1993 certified and UL1598C classified for USA and Canada. Magnetic Ballast & Line Voltage Compatible. Replaces LED-7302

SPECIFICATIONS

Bulb Type:                 G24d 2 PIN GEN 3 UNIVERSAL

Bulb Material:          PC w/ aluminum heatsink / back support

Lumens:                    849 / 869 / 887

Dimensions:              5.75″ x 1.374″

Input Voltage:           120-277V

CRI:                            81.9 / 85 / 84.1

Lumens Per Watt:   120 / 120 / 134

Base Type:                G24d

Replaces:                  26W 2 Pin PL MAGNETIC BALLAST

Lifetime (hours):      Up to 50,000

Output Power:          11W

Beam Angle:            120/ Horizontal

Color:                         2700K, 3500K, & 4000K

Dimmable:                No

Warranty:                  5 year warranty

* Replaces LED-7302

ul_us_can_Logo

LED-7311-A

7312

DESCRIPTION
PL  LED 7W
G23-2 2 PIN
GEN 3 UNIVERSALMAGNETIC BALLAST &
LINE VOLTAGE COMPATIBLE

LED-7312-A

7312

DESCRIPTION
PL  LED 7W
GX23 2 PIN
GEN 3 UNIVERSALMAGNETIC BALLAST &
LINE VOLTAGE COMPATIBLE
DESCRIPTION

LED G24d BR30 Style PL Retrofit. Model LED-7306 2 pin fits either G24d-2 or G24d-3.  Replaces 26w PL fluorescents lamps in recessed can applications.  Works with magnetic ballast or direct 120-277 (USA) or 120-347V (CANADA) line voltage. G24d/q mounting integrates energy saving LED technology into a standard PL Fluorescent format. Not dimmable. Available in Cool White (3500K or 4200K). UL approved and Classified 1598C. UL fixture retains UL approval after retrofit.  5 year warranty.

SPECIFICATIONS

Bulb Type:                  G24d PL LED

Bulb Material:             PC w/ aluminum heatsink / back support

Lumens:                      Up to 4200K

Dimensions:               5.5″ x 2.2″

Input Voltage:             120-277V / 120-347V (Canada)

CRI:                              Up to 85.4

Lumens Per Watt:    93.08 / 100.8

Base Type:                   G24d

Replaces:                     26w G24d (2 pin) Compact Fluorescent Lamps

Lifetime (hours):        Up to 50,000

Output Power:            10W

Beam Angle:                180

Color:                            3500K and 4200K

Dimmable:                     No

Warranty:                      5 year warranty

ul_us_can_Logo

DESCRIPTION

LED G24d BR30 Style PL Retrofit. Model LED-7306 2 pin fits either G24d-2 or G24d-3.  Replaces 26w PL fluorescents lamps in recessed can applications.  Works with magnetic ballast or direct 120-277 (USA) or 120-347V (CANADA) line voltage. G24d/q mounting integrates energy saving LED technology into a standard PL Fluorescent format. Not dimmable. Available in Cool White (3500K or 4200K). UL approved and Classified 1598C. UL fixture retains UL approval after retrofit.  5 year warranty.

SPECIFICATIONS

Bulb Type:                 G24d 2 Pin PL LED

Bulb Material:            PC w/ aluminum heatsink / back support

Lumens:                    Up to 1071K

Dimensions:              6.11″ x 3.78″

Input Voltage:           120-277V / 120-347V (Canada)

CRI:                             Up to 85

Lumens Per Watt:      91

Base Type:                 G24d

Replaces:                   26w G24d (2 pin) Compact Fluorescent Lamps

Lifetime (hours):       Up to 50,000

Output Power:           26W

Beam Angle:              180

Color:                          3500K and 4200K

Dimmable:                  No

Warranty:                   5 year warranty

ul_us_can_Logo

DESCRIPTION

LED G24q BR30 Style PL Retrofit. Model LED-7308 4 pin fits either G24q-1, G24q-2 or G24q-3. Replaces Vertically oriented 26w PL fluorescents lamps in recessed can applications.  Works with direct 120-277 (USA) or 120-347V (CANADA) line voltage only. G24d/q mounting integrates energy saving LED technology into a standard PL Fluorescent format. Not dimmable. Available in Cool White (3500K or 4200K). UL approved and Classified 1598C. UL fixture retains UL approval after retrofit.  5 year warranty.

SPECIFICATIONS

Bulb Type:                  G24q 4 Pin PL LED

Bulb Material:            PC w/ aluminum heatsink / back support

Lumens:                     Up to 1085K

Dimensions:               6.11″ x 3.78″

Input Voltage:           120-277V / 120-347V (Canada)

CRI:                              Up to 85

Lumens Per Watt:    93-101

Base Type:                 G24q

Replaces:                   26w G24q (4 pin) Compact Fluorescent Lamps

Lifetime (hours):      Up to 50,000

Output Power:          26W

Beam Angle:              180

Color:                          3500K and 4200K

Dimmable:                 No

Warranty:                   5 year warranty

ul_us_can_Logo

Energy saving replacement for Fluorescent T8 Tubes

10W

Replaces up to 17W

2 foot

SPECIFICATIONS

Bulb Type:                 T8

Lumens:                    1000 lumens

Dimensions:              23.1″ X 1.123″”

Base Type:                G13

Replaces:                  17W

Output Power:          10W

Energy saving replacement for Fluorescent T8 Tubes

2 foot Frosted Lens 10W Replaces up to 17W



SPECIFICATIONS

Bulb Type:                 T8

Lumens:                    1000 lumens

Dimensions:              23.1″ X 1.123″”

Base Type:                G13

Replaces:                  17W

Output Power:          10W

MODEL NO. LED-6204 | 17W | Replaces up to 32W T8 | G13 Base

DESCRIPTION

Ballast Compatible T8 LED, 120/277 Volt, G13 bi-pin mounting that integrates energy saving LED technology into a standard T8 fluorescent format. Use with Instant start T8 ballasts UL for both USA and Canada.  Available in Cool White (4000K) with frosted lens.

SPECIFICATIONS



Bulb Type:               T8

Bulb Material:         Acrylic w/ aluminum heatsink / back support

Lumens:                  1880 lumens

Dimensions:            4’NOM. X 1-1/8”

Input Voltage:          100-277V

CRI:                           >80

Base Type:               G13 T-8 bi-pin

Replaces:                 32W, 40W

Lifetime (hours):      Up to 50,000

Output Power:          18W (4’)

Beam Angle:             120

Color:                         Cool White (4000K)

Dimmable:                 No

Warranty:                   5 year warranty

ul_us_can_Logo

MODEL NO. LED-6115 | 18WReplaces up to 32W T8 | g13 Base

DESCRIPTION

18W LED Retrofit Lamp for replacing HID lamps up to 32W
120 – 277 Volt, Approved by UL for enclosed fixtures,  UL1993 certified for USA and Canada. Available in Daylight (5700K) or Cool White (4000K)

SPECIFICATIONS

Bulb Type:                 T8

Bulb Material:            Acrylic w/ aluminum heatsink / back support

Lumens:                    1880 lumens

Dimensions:              4’NOM. X 1-1/8”

Input Voltage:            100-277V

CRI:                            >80

Base Type:                Medium T-8 bi-pin

Replaces:                  32W, 40W

Lifetime (hours):      Up to 50,000

Output Power:          18W (4’)

Beam Angle:            120

Color:                        Cool White (4000K) / Daylight (5700K)

Dimmable:                 No

Warranty:                  5 year warranty

ul_us_can_Logo
