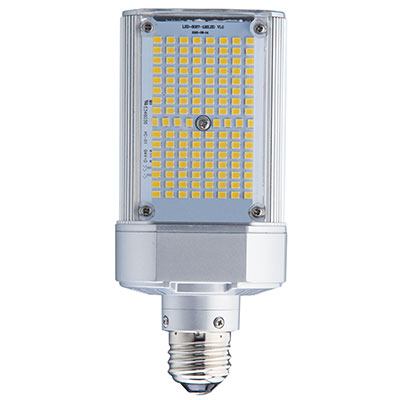

MODEL NO. LED-8087E | 30W | Replaces up to 100W | E26 Edison Base
5700K LED-8087E57-A_LM79
Canadian 5700K LED-8087E57C-A_LM79
4000K LED-8087E40-A_LM79
Canadian 4000K LED-8087E40C-A_LM79
MODEL NO. LED-8087M | 30W | Replaces up to 100W | M40 Mogul Base

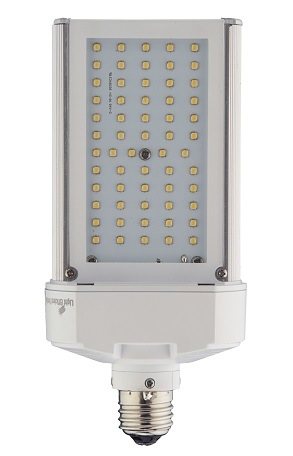

MODEL NO. LED-8088E | 50W | Replaces up to 175W | E26 Edison Base
MODEL NO. LED-8088M | 50W | Replaces up to 175W | E39 Mogul Base
MODEL NO. LED-8089M | 80W | Replaces up to 250W | E39 Mogul Base

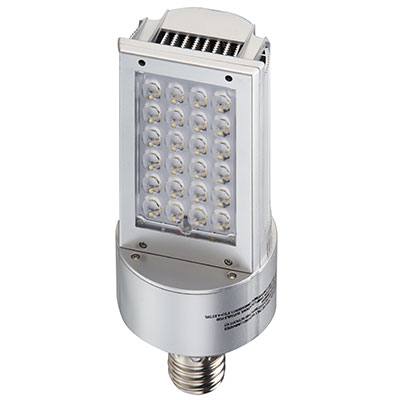

MODEL NO. LED-8090M-A | 120W | Replaces up to 400W | E39 Mogul Base
3000K LED-8090M30-A_LM79
4000K LED-8090M40-A_LM79
Canadian 4000K LED-8090M40C-A_LM79
5000K LED-8090M50-A_LM79
Canadian 5000K LED-8090M50C-A_LM79
MODEL NO. LED-8055E | 30W | Replaces up to 100W | E26 Edison Base
MODEL NO. LED-8055M | 30W | Replaces up to 30W | E39 Mogul Base
MODEL NO. LED-8045M | 50W | Replaces up to 175W | E39 Mogul Base
MODEL NO. LED-8055EC | 30W | Replaces up to 300W | E26 Edison Base | Color Changing
MODEL NO. LED-8055EW | 30W | Replaces up to 300W | E26 Edison Base | White
MODEL NO. LED-8081E | 30W | Replaces up to 100W | E26 Edison Base
MODEL NO. LED-8082M | 45W | Replaces up to 175W | E39 Mogul Base

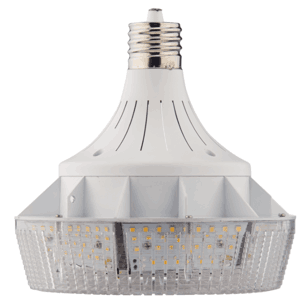

MODEL NO. LED-8036M-A | 100W | Replaces up to 250W | EX39 Base
Canadian LED-8036MXXC-A_ISTMT
4000KLED-8036M40-A_LM79
Canadian 4000K LED-8036M40C-A_LM79
5700K LED-8036M57-A_LM79
Canadian 5700K LED-8036M57C-A_LM79

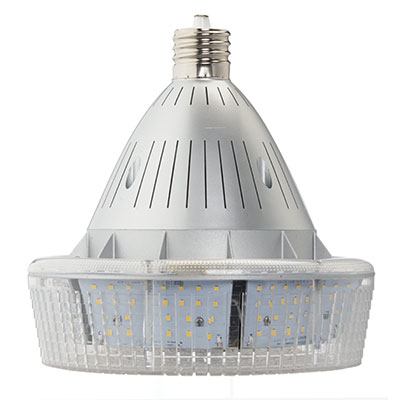

MODEL NO. LED-8030M-A | 140W | Replaces up to 400W | EX39 Base
4000KLED-8030M40-A_LM79
Canadian 4000K LED-8030M40C-A_LM79
5700K LED-8030M57-A_LM79
Canadian 5700K LED-8030M57C-A_LM79

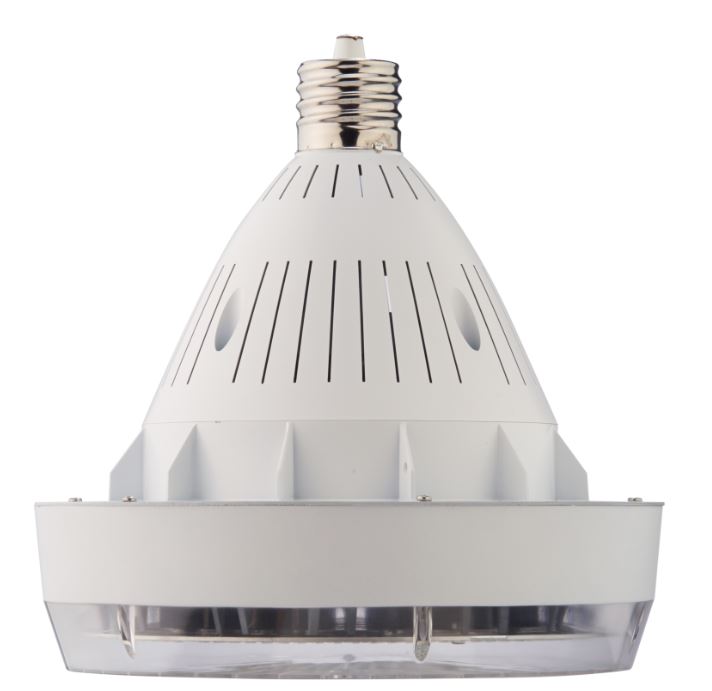

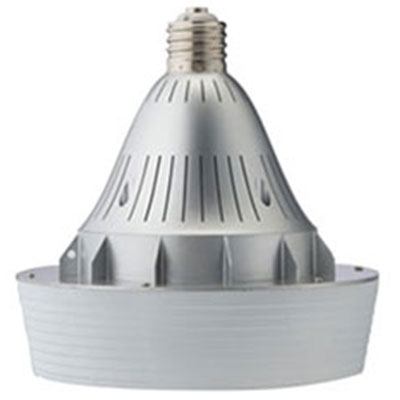

MODEL NO. LED-8032M-A | 140W | Replaces up to 400W | EX39 Base
MODEL NO. LED-8025E | 52W | Replaces up to 175W | E26 Edison Base

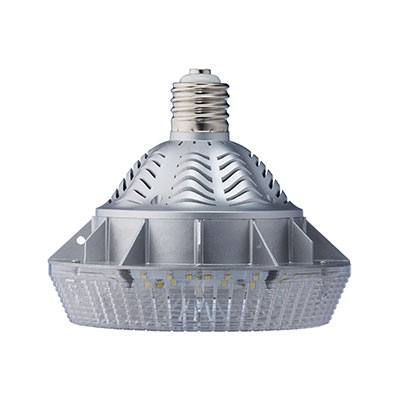

MODEL NO. LED-8025M | 52W | Replaces up to 175W | E39 Mogul Base
DESCRIPTION
18W LED Retrofit Lamp for replacing HID lamps up to 100W
120 – 277 Volt, E26 base, Approved by UL for enclosed fixtures, Active cooling is provided by long life “Mag-Lev” cooling fan which keeps LED’s cool even when operating within enclosed light fixtures. UL1993 certified for USA and Canada. Available in Daylight (5700K), Cool White (4000K) or Neutral White (3000K).

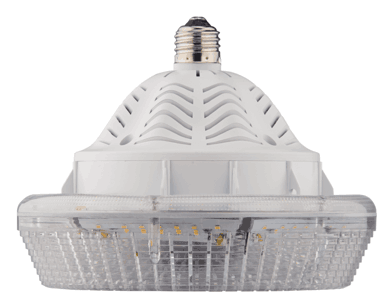

MODEL NO. LED-8035E-A | 60W | Replaces up to 175W | E26 Edison Base
MODEL NO. LED-8034M | 150W | Replaces up to 400W | EX39 Base

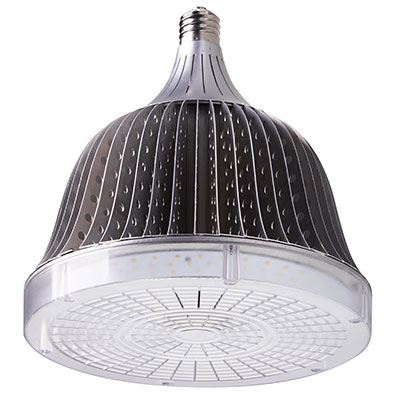

MODEL NO. LED-8050M | 300W | Replaces up to 1000W | EX39 Base
MODEL NO. LED-8083E | 30W | Replaces up to 100w | E26 Edison Base
MODEL NO. LED-8038E-A | 14W | Replaces up to 70W | E26 Edison Base

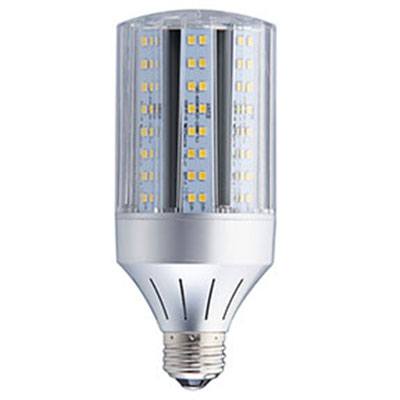

MODEL NO. LED-8039E-A | 18W | Replaces up to 70W | E26 Edison Base

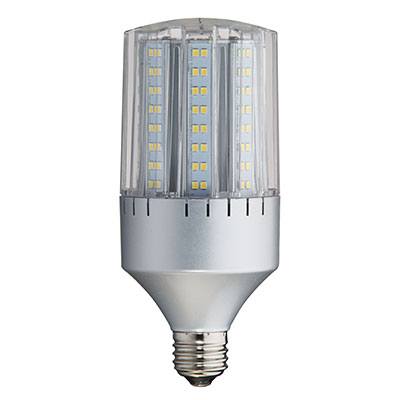

MODEL NO. LED-8029E-A | 22W | Replaces up to 100W | E26 Edison Base
LED-8029E30_LM79 3000K
LED-8029E40-A_LM79 4000K
LED-8029E57-A_LM79 5000K
LED-8029E42_LM79 4200k
LED-8029E57_LM79 5700k
MODEL NO. LED-8029M-A | 22W | Replaces up to 100W | E39 Mogul Base
MODEL NO. LED-8033E | 38W | Replaces up to 175W | E26 Edison Base
DESCRIPTION
38W LED Retrofit Lamp for replacing HID lamps up to 175W
120 – 277 Volt or 120-347V for Canadian “C” model, E26 base, Approved by UL for enclosed fixtures, Active cooling is provided by long life “Mag-Lev” cooling fan which keeps LED’s cool even when operating within enclosed light fixtures. UL1993 certified for USA and Canada. Available in Daylight (5700K), Cool White (4200K) or Neutral White (3000K).
SPECIFICATIONS
Bulb Type: | Cylindrical |
---|---|
Bulb Material: | Polycarbonate / Aluminum |
Lumens: | 3661/ 3919/ 3955 |
Dimensions: | 6.02” x 2.76” |
Input Voltage: | 120-277V |
CRI: | Up to 84 |
Lumens Per Watt: | 117 / 127 / 128 |
Base Type: | E26 Edison |
Replaces: | 100W HID |
Lifetime (hours): | Up to 50,000 |
Output Power: | 30W |
Beam Angle: | 360 |
Color: | Neutral White (3000K) / Cool White (4200) / Daylight (5700K) |
Dimmable: | No |
Warranty: | 5 year warranty |
PRODUCT NOTES
- When installing LED-8000 series retrofit within HID fixtures, ballast must be bypassed when present.
- LED-8000 series retrofits are UL damp rated, sealing the existing HID fixture after installation will deliver best results.
- Installing surge/lightning protectors is highly recommended and helps to eliminate premature driver failure caused by surges and other power fluctuations.
- See Technical Documents web page for more detailed information and instructions.

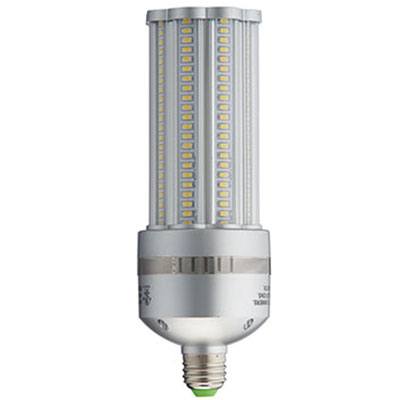

MODEL NO. LED-8024E | 45W | Replaces up to 175W | E26 Edison Base
MODEL NO. LED-8024M | 45W | Replaces up to 175W | E39 Mogul Base
MODEL NO. LED-8046M | 65W | Replaces up to 250W | E39 Mogul Base
MODEL NO. LED-8027M | 100W | Replaces up to 400W | E39 Mogul Base
MODEL NO. LED-8083E | 30W | Replaces up to 100w | E26 Edison Base
MODEL NO. LED-8084M | 45W | Replaces up to 175W | E39 Mogul Base

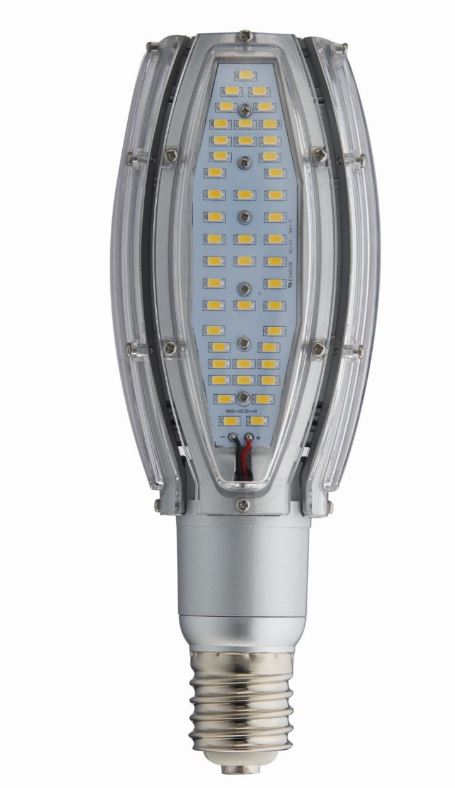

MODEL NO. LED-8085M | 60W | Replaces up to 250w | E39 Mogul Base
METAL HALIDE BALLAST COMPATIBLE
Canadian LED-8036MXXC-A_ISTMT
4000KLED-8036M40-A_LM79
Canadian 4000K LED-8036M40C-A_LM79
5700K LED-8036M57-A_LM79
Canadian 5700K LED-8036M57C-A_LM79
Canadian LED-8036MXXC-A_ISTMT
4000KLED-8036M40-A_LM79
Canadian 4000K LED-8036M40C-A_LM79
5700K LED-8036M57-A_LM79
Canadian 5700K LED-8036M57C-A_LM79
Canadian LED-8036MXXC-A_ISTMT
4000KLED-8036M40-A_LM79
Canadian 4000K LED-8036M40C-A_LM79
5700K LED-8036M57-A_LM79
Canadian 5700K LED-8036M57C-A_LM79
Canadian LED-8036MXXC-A_ISTMT
4000KLED-8036M40-A_LM79
Canadian 4000K LED-8036M40C-A_LM79
5700K LED-8036M57-A_LM79
Canadian 5700K LED-8036M57C-A_LM79
MODEL NO. LED-8088E-MHBC | 50W | Replaces HID lamps up to 175W M57 Ballast & 250W M58 | E26 Edison Base
Canadian LED-8036MXXC-A_ISTMT
4000KLED-8036M40-A_LM79
Canadian 4000K LED-8036M40C-A_LM79
5700K LED-8036M57-A_LM79
Canadian 5700K LED-8036M57C-A_LM79
MODEL NO. LED-8088M-MHBC | 50W | Replaces HID lamps up to 175W M57 Ballast & 250W M58 | E39 MOGUL Base
Canadian LED-8036MXXC-A_ISTMT
4000KLED-8036M40-A_LM79
Canadian 4000K LED-8036M40C-A_LM79
5700K LED-8036M57-A_LM79
Canadian 5700K LED-8036M57C-A_LM79
DESCRIPTION
80W LED Retrofit Lamp for replacing HID lamps up to 250W M58 or 320W M132 Ballasts
Canadian LED-8036MXXC-A_ISTMT
4000KLED-8036M40-A_LM79
Canadian 4000K LED-8036M40C-A_LM79
5700K LED-8036M57-A_LM79
Canadian 5700K LED-8036M57C-A_LM79
DESCRIPTION
120W LED Retrofit Lamp for replacing HID lamps up to 320W M132 & 400W M59 ballasts
Canadian LED-8036MXXC-A_ISTMT
4000KLED-8036M40-A_LM79
Canadian 4000K LED-8036M40C-A_LM79
5700K LED-8036M57-A_LM79
Canadian 5700K LED-8036M57C-A_LM79
DESCRIPTION
SPECIFICATIONS
Bulb Type: Site / Warehouse
Bulb Material: Aluminum / Polycarbonate
Lumens: 18000 / 5000K
Dimensions: 24″ X 24″ X 2.5″
Input Voltage: 120-277V
CRI: >80
Lumens Per Watt: 120
Base Type: N/A
Replaces: 400W
Lifetime (hours): Up to 50,000
Output Power: 150W
Beam Angle: 120
Color: Daylight (5000K)
Dimmable: No
Warranty: 5 year warranty
PRODUCT NOTES
- When installing LED-8000 series retrofit lamps within HID fixtures, ballast must be bypassed when present.
- LED-8000 series retrofits are UL damp rated, sealing the existing HID fixture after installation will deliver best results.
- Installing surge/lightning protectors is highly recommended and helps to eliminate premature driver failure caused by surges and other power fluctuations.
- See Technical Documents web page for more detailed information and instructions.

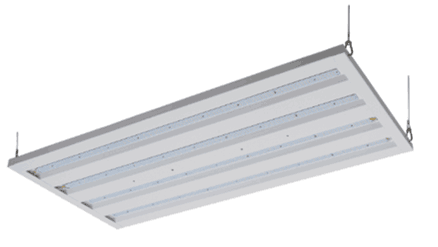

DESCRIPTION
SPECIFICATIONS
Bulb Type: Site / Warehouse
Bulb Material: Aluminum / Polycarbonate
Lumens: 36000 / 5000K
Dimensions: 48″ X 24″ X 2.5″
Input Voltage: 120-277V
CRI: >80
Lumens Per Watt: 120
Base Type: N/A
Replaces: 1000W
Lifetime (hours): Up to 50,000
Output Power: 300W
Beam Angle: 120
Color: Daylight (5000K)
Dimmable: No
Warranty: 5 year warranty
PRODUCT NOTES
- When installing LED-8000 series retrofit lamps within HID fixtures, ballast must be bypassed when present.
- LED-8000 series retrofits are UL damp rated, sealing the existing HID fixture after installation will deliver best results.
- Installing surge/lightning protectors is highly recommended and helps to eliminate premature driver failure caused by surges and other power fluctuations.
- See Technical Documents web page for more detailed information and instructions.
DESCRIPTION
9 Watt Replaces up to 26W fluorescent or PL lamps
SPECIFICATIONS
Bulb Type: G24q PL LED
Bulb Material: PC w/ aluminum heatsink / back support
Lumens: 704 / 834
Dimensions: 6.2” x 1.4″
Input Voltage: 120-277V
CRI: Up to 85.4
Lumens Per Watt: 85.4 / 84.9
Base Type: G24q
Replaces: 26W PL
Lifetime (hours): Up to 35,000
Output Power: 9W
Beam Angle: 120 / Horizontal
Color: 2700K and 4000K
Dimmable: No
Warranty: 5 year warranty
*Gen 2 New replaces LED-7304
DESCRIPTION
PL LED 7W G24Q & GX24Q 4 PIN GEN 3 UNIVERSAL, ELECTRONIC BALLAST & LINE VOLTAGE COMPATIBLE
***Use this product instead of 7314
SPECIFICATIONS
Bulb Type: G24q PL LED
Bulb Material: PC w/ aluminum heatsink / back support
Lumens: 850 / 900 / 900
Dimensions: 5.75” X 1.374″
Input Voltage: 120-277V
CRI: Up to 85.4
Lumens Per Watt: 110/110/110
Base Type: G24Q
Replaces: 26W PL
Lifetime (hours): Up to 35,000
Output Power: 9W
Beam Angle: 120 / Horizontal
Color: 2700K, 3500K, & 4000K
Dimmable: No
Warranty: 5 year warranty

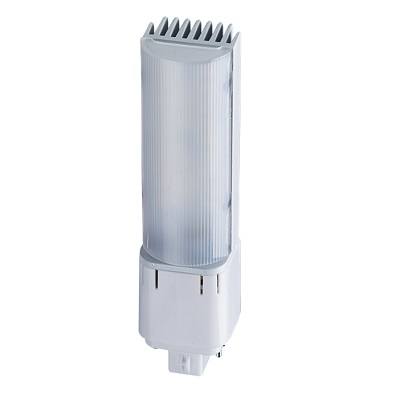

*Gen 3 New replaces LED-7324
DESCRIPTION
11W G24q 4 Pin LED Retrofit Lamp PL CFL lamps up to 26W, G24q base, UL1993 certified and UL1598C classified for USA and Canada. Electronic Ballast & Line Voltage Compatible
SPECIFICATIONS
Bulb Type: G24Q 4 PIN GEN 2 UNIVERSAL
Bulb Material: PC w/ aluminum heatsink / back support
Lumens: 1065 / 1100 / 1167
Dimensions: 6.2″ x 1.4″
Input Voltage: 120-277V
CRI: 85.4 / 84.9 / 84.9
Lumens Per Watt: 96 / 100 / 106
Base Type: G24q
Replaces: 26w G24q (4 pin) Compact Fluorescent Lamps
Lifetime (hours): Up to 50,000
Output Power: 11W
Beam Angle: 120/ 360 Omni-Directional
Color: 2700K, 3500K, & 4000K
Dimmable: No
Warranty: 5 year warranty
*New Replaces LED-7310
LED-7322-A
DESCRIPTION
7W G24d 2 Pin LED Retrofit Lamp PL CFL lamps up to 26W, G24d base, UL1993 certified and UL1598C classified for USA and Canada. Magnetic Ballast & Line Voltage Compatible. Replaces LED-7302
SPECIFICATIONS
Bulb Type: G24d 2 PIN GEN 3 UNIVERSAL
Bulb Material: PC w/ aluminum heatsink / back support
Lumens: 849 / 869 / 887
Dimensions: 5.75″ x 1.374″
Input Voltage: 120-277V
CRI: 81.9 / 85 / 84.1
Lumens Per Watt: 120 / 120 / 134
Base Type: G24d
Replaces: 26W 2 Pin PL MAGNETIC BALLAST
Lifetime (hours): Up to 50,000
Output Power: 11W
Beam Angle: 120/ Horizontal
Color: 2700K, 3500K, & 4000K
Dimmable: No
Warranty: 5 year warranty

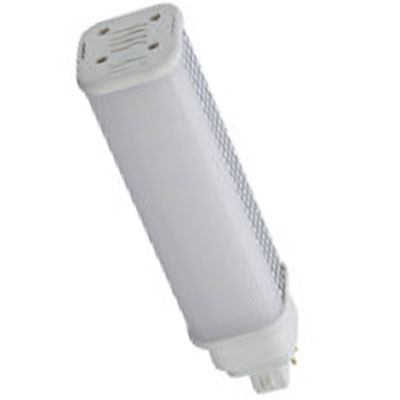

* Replaces LED-7302
LED-7311-A
DESCRIPTION
PL LED 7W G23-2 2 PIN GEN 3 UNIVERSALMAGNETIC BALLAST & LINE VOLTAGE COMPATIBLE |
LED-7312-A
DESCRIPTION
PL LED 7W GX23 2 PIN GEN 3 UNIVERSALMAGNETIC BALLAST & LINE VOLTAGE COMPATIBLE |
DESCRIPTION
LED G24d BR30 Style PL Retrofit. Model LED-7306 2 pin fits either G24d-2 or G24d-3. Replaces 26w PL fluorescents lamps in recessed can applications. Works with magnetic ballast or direct 120-277 (USA) or 120-347V (CANADA) line voltage. G24d/q mounting integrates energy saving LED technology into a standard PL Fluorescent format. Not dimmable. Available in Cool White (3500K or 4200K). UL approved and Classified 1598C. UL fixture retains UL approval after retrofit. 5 year warranty.
SPECIFICATIONS
Bulb Type: G24d PL LED
Bulb Material: PC w/ aluminum heatsink / back support
Lumens: Up to 4200K
Dimensions: 5.5″ x 2.2″
Input Voltage: 120-277V / 120-347V (Canada)
CRI: Up to 85.4
Lumens Per Watt: 93.08 / 100.8
Base Type: G24d
Replaces: 26w G24d (2 pin) Compact Fluorescent Lamps
Lifetime (hours): Up to 50,000
Output Power: 10W
Beam Angle: 180
Color: 3500K and 4200K
Dimmable: No
Warranty: 5 year warranty
DESCRIPTION
LED G24d BR30 Style PL Retrofit. Model LED-7306 2 pin fits either G24d-2 or G24d-3. Replaces 26w PL fluorescents lamps in recessed can applications. Works with magnetic ballast or direct 120-277 (USA) or 120-347V (CANADA) line voltage. G24d/q mounting integrates energy saving LED technology into a standard PL Fluorescent format. Not dimmable. Available in Cool White (3500K or 4200K). UL approved and Classified 1598C. UL fixture retains UL approval after retrofit. 5 year warranty.
SPECIFICATIONS
Bulb Type: G24d 2 Pin PL LED
Bulb Material: PC w/ aluminum heatsink / back support
Lumens: Up to 1071K
Dimensions: 6.11″ x 3.78″
Input Voltage: 120-277V / 120-347V (Canada)
CRI: Up to 85
Lumens Per Watt: 91
Base Type: G24d
Replaces: 26w G24d (2 pin) Compact Fluorescent Lamps
Lifetime (hours): Up to 50,000
Output Power: 26W
Beam Angle: 180
Color: 3500K and 4200K
Dimmable: No
Warranty: 5 year warranty
DESCRIPTION

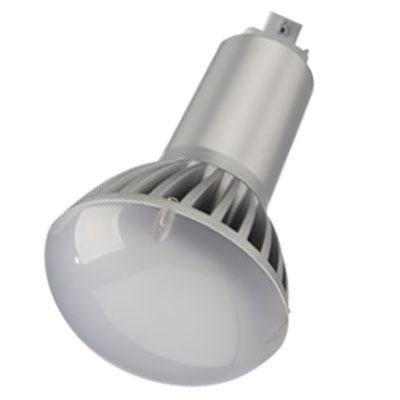

LED G24q BR30 Style PL Retrofit. Model LED-7308 4 pin fits either G24q-1, G24q-2 or G24q-3. Replaces Vertically oriented 26w PL fluorescents lamps in recessed can applications. Works with direct 120-277 (USA) or 120-347V (CANADA) line voltage only. G24d/q mounting integrates energy saving LED technology into a standard PL Fluorescent format. Not dimmable. Available in Cool White (3500K or 4200K). UL approved and Classified 1598C. UL fixture retains UL approval after retrofit. 5 year warranty.
SPECIFICATIONS
Bulb Type: G24q 4 Pin PL LED
Bulb Material: PC w/ aluminum heatsink / back support
Lumens: Up to 1085K
Dimensions: 6.11″ x 3.78″
Input Voltage: 120-277V / 120-347V (Canada)
CRI: Up to 85
Lumens Per Watt: 93-101
Base Type: G24q
Replaces: 26w G24q (4 pin) Compact Fluorescent Lamps
Lifetime (hours): Up to 50,000
Output Power: 26W
Beam Angle: 180
Color: 3500K and 4200K
Dimmable: No
Warranty: 5 year warranty

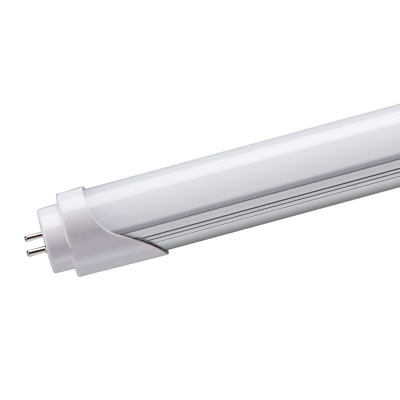

Energy saving replacement for Fluorescent T8 Tubes
10W
Replaces up to 17W
2 foot
SPECIFICATIONS
Bulb Type: T8
Lumens: 1000 lumens
Dimensions: 23.1″ X 1.123″”
Base Type: G13
Replaces: 17W
Output Power: 10W
Energy saving replacement for Fluorescent T8 Tubes
2 foot Frosted Lens 10W Replaces up to 17W
SPECIFICATIONS
Bulb Type: T8
Lumens: 1000 lumens
Dimensions: 23.1″ X 1.123″”
Base Type: G13
Replaces: 17W
Output Power: 10W
MODEL NO. LED-6204 | 17W | Replaces up to 32W T8 | G13 Base
DESCRIPTION
Ballast Compatible T8 LED, 120/277 Volt, G13 bi-pin mounting that integrates energy saving LED technology into a standard T8 fluorescent format. Use with Instant start T8 ballasts UL for both USA and Canada. Available in Cool White (4000K) with frosted lens.
SPECIFICATIONS
Bulb Type: T8
Bulb Material: Acrylic w/ aluminum heatsink / back support
Lumens: 1880 lumens
Dimensions: 4’NOM. X 1-1/8”
Input Voltage: 100-277V
CRI: >80
Base Type: G13 T-8 bi-pin
Replaces: 32W, 40W
Lifetime (hours): Up to 50,000
Output Power: 18W (4’)
Beam Angle: 120
Color: Cool White (4000K)
Dimmable: No
Warranty: 5 year warranty
MODEL NO. LED-6115 | 18W | Replaces up to 32W T8 | g13 Base
DESCRIPTION
18W LED Retrofit Lamp for replacing HID lamps up to 32W
120 – 277 Volt, Approved by UL for enclosed fixtures, UL1993 certified for USA and Canada. Available in Daylight (5700K) or Cool White (4000K)
SPECIFICATIONS
Bulb Type: T8
Bulb Material: Acrylic w/ aluminum heatsink / back support
Lumens: 1880 lumens
Dimensions: 4’NOM. X 1-1/8”
Input Voltage: 100-277V
CRI: >80
Base Type: Medium T-8 bi-pin
Replaces: 32W, 40W
Lifetime (hours): Up to 50,000
Output Power: 18W (4’)
Beam Angle: 120
Color: Cool White (4000K) / Daylight (5700K)
Dimmable: No
Warranty: 5 year warranty
